Archer 1200 Vehicle Barrier
Portable Anti-Ram Vehicle Barrier for Military Checkpoints & Perimeter Security
Gallery
Archer 1200 Field Deployment

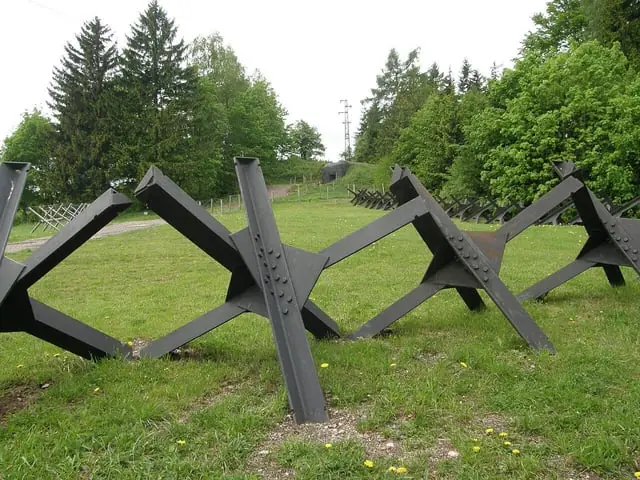

Archer 1200 Checkpoint Installation
Archer 1200 Field Deployment
Archer 1200 System Overview
Overview
Archer 1200 Vehicle Barrier — Portable Anti-Ram Protection
The Archer 1200 Vehicle Barrier is a heavy-duty, portable anti-ram barrier system designed for rapid deployment at military checkpoints, perimeter security zones, and temporary access control points. Engineered to stop vehicles up to 15,000 kg GVW at speeds of 80 km/h, it meets K12 crash test standards (ASTM F2656-18) for the highest level of vehicle barrier protection.
Constructed from heavy-gauge structural steel with a welded box-section frame, each barrier unit weighs 1,200 kg and can be deployed by two personnel in under 5 minutes without tools or heavy equipment. The modular design allows for linear or staggered configurations to create vehicle inspection lanes, perimeter denial zones, and entry control points.
The Archer 1200 is manufactured from structural steel per EN 10025 S355JR, hot-dip galvanized for corrosion resistance, and is fully compliant with EU CE marking (EN 1090) and ISO 9001 quality standards. Its compact footprint and fork-lift compatible base make it ideal for temporary or permanent installation at embassies, military bases, government buildings, and critical infrastructure sites.
Specifications
Technical Specifications
Technical Specifications
Standard dimensions and technical data
Dimensions & Sizes
| Parameter | Value |
|---|---|
| Crash Rating | K12 (ASTM F2656-18) — 15,000 kg at 80 km/h |
| Overall Dimensions (L×W×H) | 3,000 × 1,200 × 1,100 mm |
| Unit Weight | 1,200 kg |
| Material | Structural Steel S355JR (EN 10025) — Hot-Dip Galvanized |
| Deployment Time | < 5 minutes (2 personnel, no tools) |
| Surface Treatment | Hot-Dip Galvanized (ISO 1461) / Optional: Military Grade Paint |
| Certification | CE (EN 1090), ISO 9001, ASTM F2656-18 |
| Operating Temperature | -40°C to +60°C |
FEATURES
Key Features
K12 Crash Rated
Tested and certified to ASTM F2656-18 K12 standard, stopping a 15,000 kg vehicle traveling at 80 km/h with zero penetration.
Rapid Deployment
Deployable by two people in under 5 minutes with no tools or heavy machinery required. Ideal for temporary checkpoints and emergency security upgrades.
Modular Configuration
Multiple units can be arranged in linear, staggered, or L-shaped configurations to create inspection lanes, vehicle checkpoints, and perimeter denial zones.
Corrosion Resistant
Hot-dip galvanized to ISO 1461 standards, providing long-term corrosion resistance for outdoor deployment in all weather conditions.
Portable & Forklift Compatible
Integrated forklift pockets and lifting eyes allow for easy repositioning. Compact footprint enables efficient transport and storage.
Applications
Where It's Installed
Military Checkpoints
Vehicle access control at military bases, forward operating bases, and temporary security checkpoints
Perimeter Security
Perimeter denial for embassies, government buildings, airports, power plants, and critical infrastructure
Border Control
Border crossing vehicle inspection points and port-of-entry security barriers
Perimeter Security
Perimeter security deployment for critical infrastructure protection
Related
Related Products

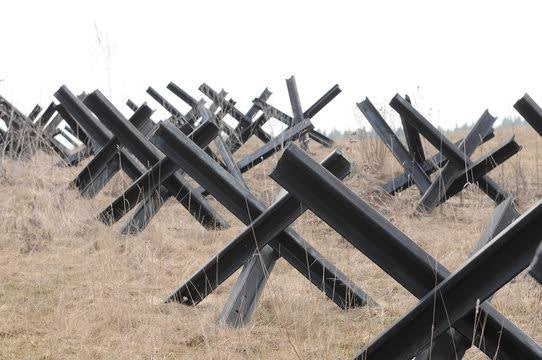

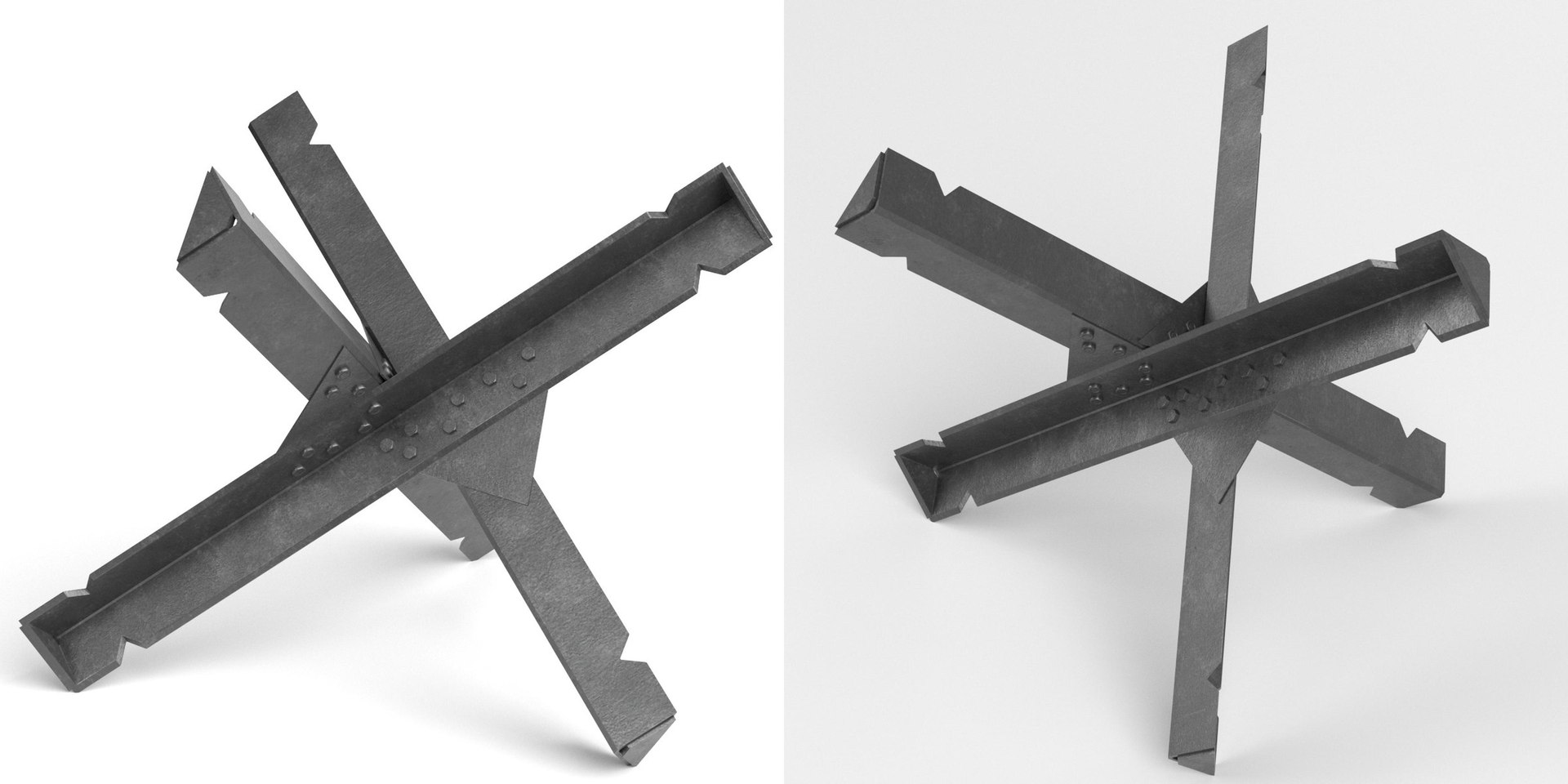

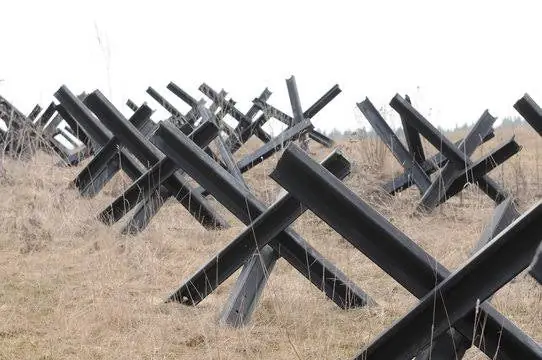

Czech Hedgehog - Anti-Tank Steel Barrier
